Unit: Work documents

LMFGN3001B: Read and interpret work documents

Section 1: Working drawings

Floor covering plans


Image for slide 1
Audio for slide 1 (mp3 |6|KB)

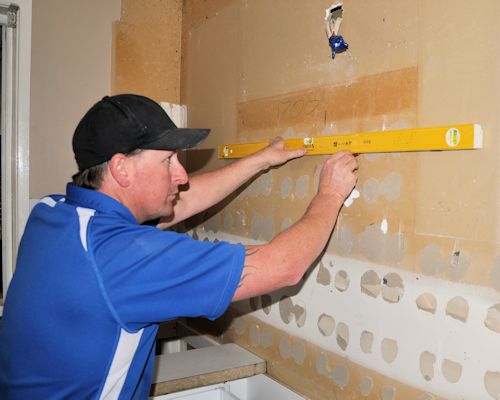

The building plans for a project are designed to provide the trades and services with general information relating to the design, structure and dimensions of the building.

But they don't provide sufficient details for the specialist installers to carry out their own work on the project.

hearing icon
Image for slide 2
Audio for slide 2 (mp3 |6|KB)

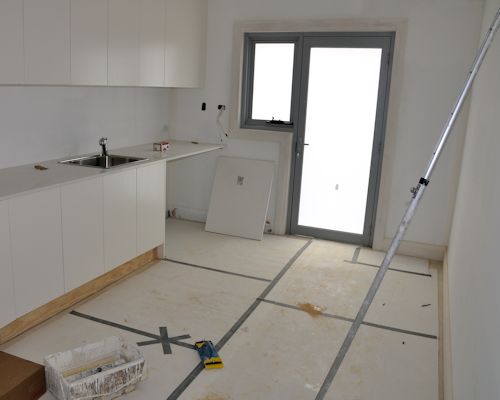

Electricians, plumbers, kitchen and bathroom installers, tilers, floor layers and various other trades still need to have their own specialised plans.

These indicate the client's selection of products to be installed and the positioning of service outlets, trims and other features.

In the case of floor layers, these sorts of details are shown on a floor covering plan.

hearing icon
Image for slide 3
Audio for slide 3 (mp3 |6|KB)

Parts of a floor covering plan

A floor covering plan consists of a proportional sketch or scale drawing of the floor area, together with information on:

  • subfloor preparations and underlays required

  • floor coverings to be installed, including product names, patterns and colours

  • positioning of seams and joins

  • direction of the pile

  • types of accessories used

  • any special features of the job.
hearing icon

Click on the link below to see a templatised planning sheet for a floor covering plan.

Floor covering planning sheet

Image for slide 4
Audio for slide 4 (mp3 |6|KB)

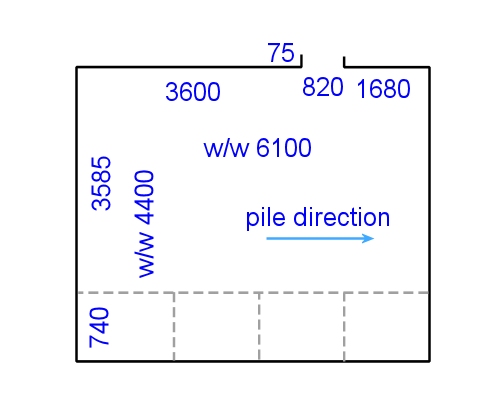

At right is a simple example of a floor covering plan, showing the seams, pile direction and measurements in millimetres.

The abbreviation 'w/w' refers to the overall 'wall to wall' dimensions of the room.

You can see that the dimensions are written on the inside, directly beside the wall they refer to.

This is because a floor layer needs to know all measurements of a room when they're working out the best fit for a covering material, including the dimensions of any recesses, projections, and returns.

For more information on floor covering plans, see the Planning and costing unit. You'll find various lessons relating to the different components of a floor covering plan and details on how to produce them.

hearing icon


Learning activity

Audio 5 (mp3 |6|KB)

Have a go at drawing up a simple floor covering plan for yourself.

Go back to the sample floor plan and do a line drawing of Bedroom 3 in the style of a 'proportional sketch'. You can either draw it freehand or use a ruler.

Mark in the measurements on the inside of the walls, taking the dimensions off the building plan.

If you want a more challenging room, choose one or more of the other rooms in the building plan. If you've got a tape measure to hand, you may even want to draw up the room you're sitting in right now.
